CAPABILITIES
CNC MILLING DEPARTMENT

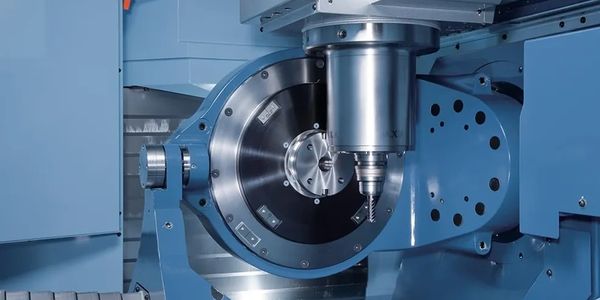

- Matsuura-MAM 72 - 35 V 5-AXIS
SPINDLE SPEED RPM 20,000
X-axis Travel inch - 21.65"
Y-axis Travel inch - 17.32"
Z-axis Travel inch - 22.83"
Travel (B/C) °-125 ~ +65/360°
NUMBER OF PALLETS 2
32 Tower Pallet System
- UMC-750SS SUPPER HAS - 5 Axis
SPINDLE SPEED RPM 20,000
X-axis Travel inch – 30.0"
Y-axis Travel inch – 20.0”
Z-axis Travel inch – 20.0"
- YCM - NXV 1680A - 4 axis - HRT310
Spindle Speed RPM 12,000
X-axis Travel inch - 64.173"
Y-axis Travel inch - 30.0"
Z-axis Travel inch - 27.51"
4 Axis - HRT310 - Indexer 12.0"
- HASS VF-6SS MODEL 2018
SPINDLE SPEED RPM 12,000
X-axis Travel inch – 64.0"
Y-axis Travel inch – 32.0”
Z-axis Travel inch – 30.0"
- AKIRA – SEIKI V5.5A MODEL 2016
SPINDLE SPEED RPM 12,000
X-axis Travel inch – 53.0"
Y-axis Travel inch – 25.0”
Z-axis Travel inch – 26.0"
CNC MILLING DEPARTMENT
- HYUNDAI WIA SE2200LY
Main Spindle
Chuck size: 8”
Spindle bore: Dia 3.0”
Spindle Speed: 4,500 RPM
- Haas ST-35Y Turning - LIVE TOOLING
Chuck Size 12.0 inches
Max Part Swing 21.0 inch
Max Cutting Diameter (with BMT65 turret) 13.75 inch
Max Cutting Length (varies with work holding) 32.5 inch
- STAR SR 20J CNC SWISS
20MM BAR CAPACITY
Main Spindle: 10,000 RPM
6 Station Turning Tool Holder for Main
- HYUNDAI WIA -SE2200 Turning Center
Chuck Size 8.0" inch
Max Part Swing 10.0" inch
Travel X - axis - 8.3" inch
Max Cutting Length 13.4" inch
- DOOSAN Lynx 2100L
Chuck Size 8.0" inch
Max Turn Diameter 13.78" inch
Max Turn Length 21.6" inch
